Water Contact Angle Testing for Tempered Glass Screen Protectors – MPG Glass Factory

MPG Glass Factory Standard for Quality Control

As smartphones transition to full-screen, high-resolution screens, screen protectors are expected to do much more than just withstand scratches. Nowadays, customers want displays that feel smooth under continuous touch, resist fingerprints, repel water, and remain clean. Testing the water contact angle is essential for determining these surface characteristics and assuring an excellent user experience.

At MPG Glass Factory, assessing hydrophobic and oleophobic performance requires the use of water contact angle testing. It gives quantifiable information on a tempered glass screen protector’s resistance to water, oil, fingerprints, and everyday contamination.

Testing for Water Contact Angle:

Water contact angle testing measures the angle created between a water droplet and a tempered glass screen protector’s surface. The ease with which water and oil may roll or spread off the surface is seen in this image.

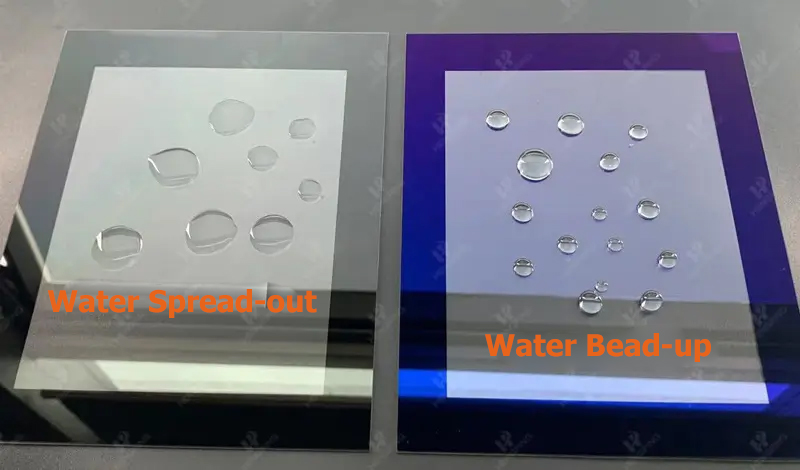

• A hydrophobic surface is indicated by a contact angle of 90° or more. Water beads up and rolls off easily.
• Super hydrophobic surfaces have a contact angle of at least 110° and are more resistant to water and oil.
• A surface is considered hydrophilic if water spreads easily and leaves stains at a contact angle of less than 30°.
• Screen protectors are tested with purified water droplets under particular humidity and temperature settings assuring accuracy and consistency.

The Water Contact Angle’s Significance

Water contact angle performance has a direct impact on both regular use and long-term durability.

• Higher contact angles extend the display’s perfect look by keeping water stains, oil smudges, and fingerprints from sticking to it.
• A smoother touch. Precise fingerprint identification, swiping, and typing are made feasible by reduced surface friction.
• The surface coating is protected against oils, perspiration, and chemical degradation by powerful hydrophobic and oleophobic layers.
• Since contact angle values are frequently included in worldwide market quality standards, this test is essential for professional production.

Standard Procedure for Testing

MPG Glass Factory employs generally acknowledged testing techniques:

• Surface cleaning: Dust, oil, and debris are completely removed from every sample.

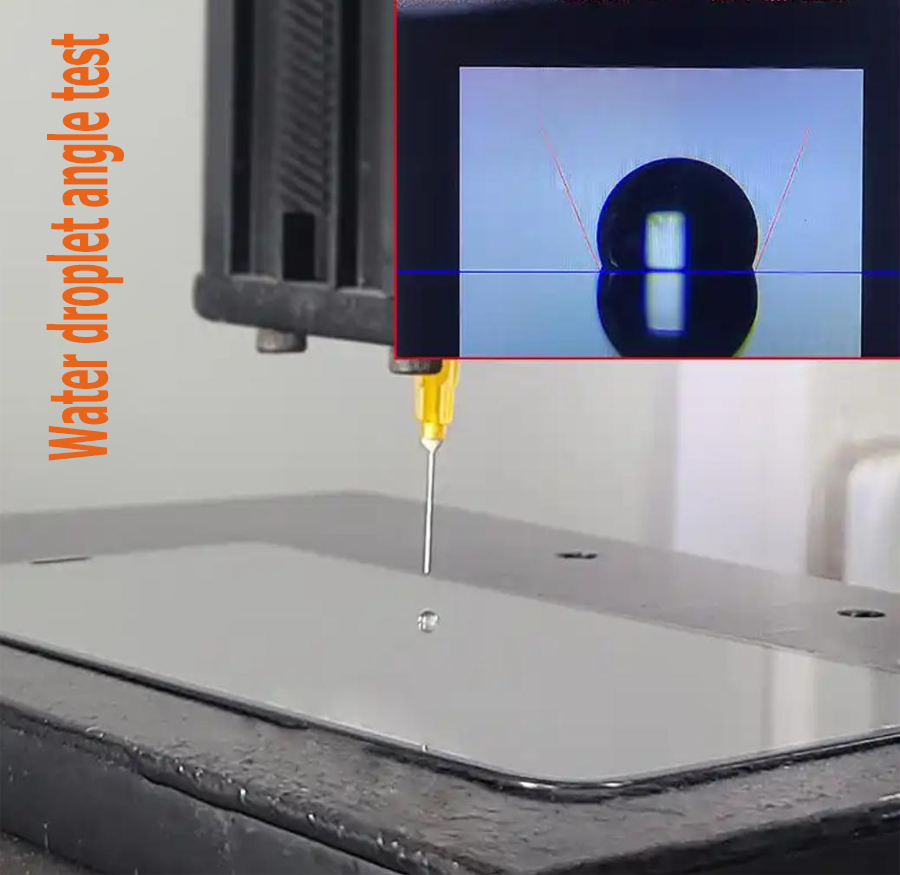

• Droplet placement: Carefully deposit a tiny droplet of clean water on the surface of the glass.

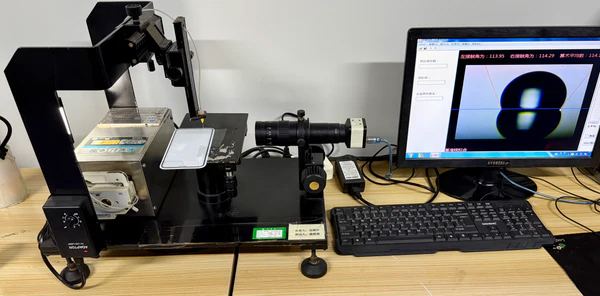

• Image capture: As soon as the droplet makes contact, high-speed imaging records its shape.
• Measurement: Software that uses precise geometric analysis computes the contact angle.
• Numerous test points: Measurements are taken at various sites to assure consistent coating performance.

For best hydrophobic performance, premium tempered glass screen protectors must be at least 110°.

How MPG Enhances Contact Angle Performance

MPG employs both hydrophobic and oleophobic optimization throughout the production process.

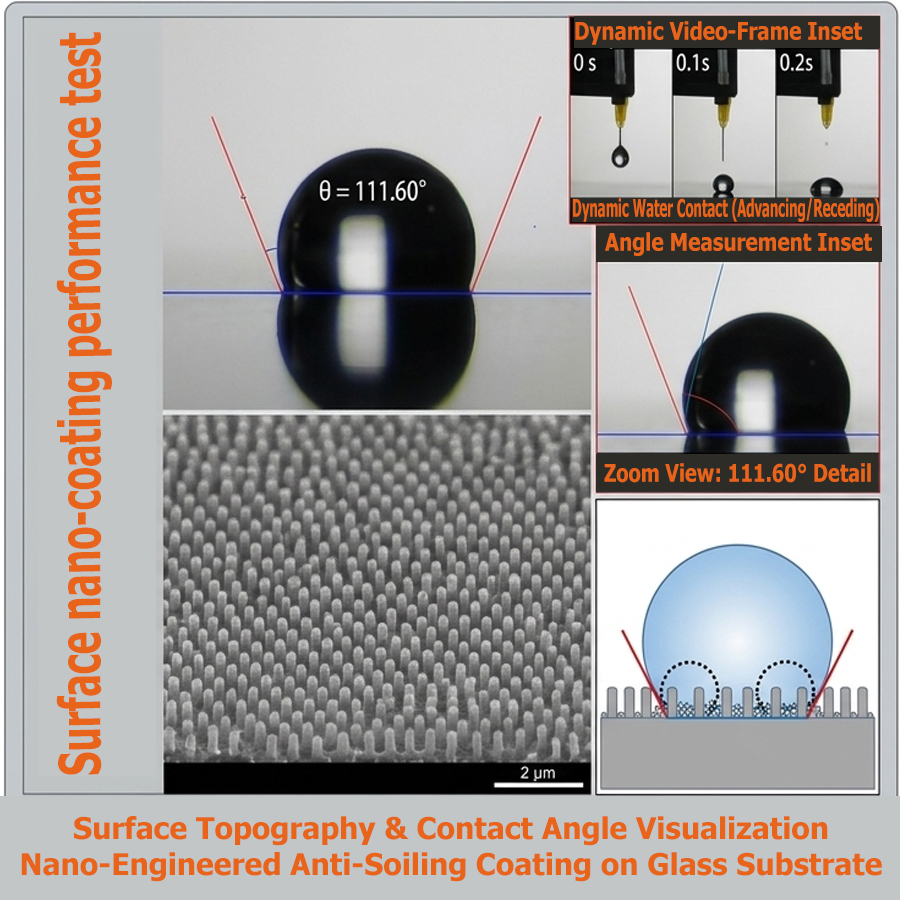

• Advanced nano coating: Ultra-thin fluorocarbon coatings effectively resist water and oil by creating a low-energy surface.
• Precision coating control: Automated coating systems ensure uniform thickness and performance across all units.
• Durability testing: To verify a coating’s long-term efficacy, it is often put through friction tests.
• Strict inspection: Ongoing sampling and final inspections guarantee that only qualified items are packaged.

Advantages for Users in Practical Applications

• Even with moist or damp hands, the tactile response is smooth.
• Extended replacement cycles and less coating wear
• Screens don’t require much upkeep to remain clean.
• Clear display free of water stains and oil haze.

In summary

Water contact angle testing is an essential quality indication for new tempered glass screen protectors. Every product at MPG Glass Factory has exceptional hydrophobic and oleophobic performance because to stringent testing regulations, cutting-edge nano-coating technology, and exact manufacturing controls.

Selecting MPG necessitates long-lasting protection, a smooth surface, and constant cleanliness—all of which are produced to satisfy international quality standards.
